Crownstone installation

General instructions for the installation can be found in the Installation page. The instructions below will take you step-by-step through the process of installing a Crownstone behind a ceiling light. If at any point you are unsure of what to do, stop installation immediately and contact an electrician.

cs_inside_lamp_zoom

Step 1: Before installing your built-in Crownstones, turn off the power at the fuse box.

fuse_box

Step 2: Unmount your ceiling light and connect the wires as shown in the schematic below.

ceiling_schema

IMPORTANT: The Crownstone is connected at the ceiling light, not at the switch!

ceiling_overview

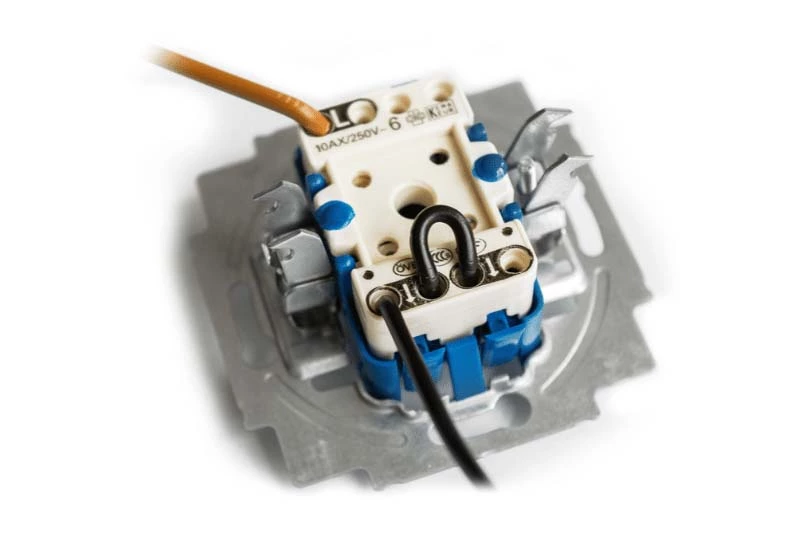

Step 3: If you want to use your existing wall switch together with Crownstone, take a look at the Switchcraft installation instructions for more information! Your ceiling light is now finished, put it back up and turn the power back on at the fuse box.

cs_inside_lamp

Step 4: Open the Crownstone app to add your new Built-in to your Sphere. Hold your smartphone near the ceiling light with your Crownstone while your new device is being added.

app_ceiling
